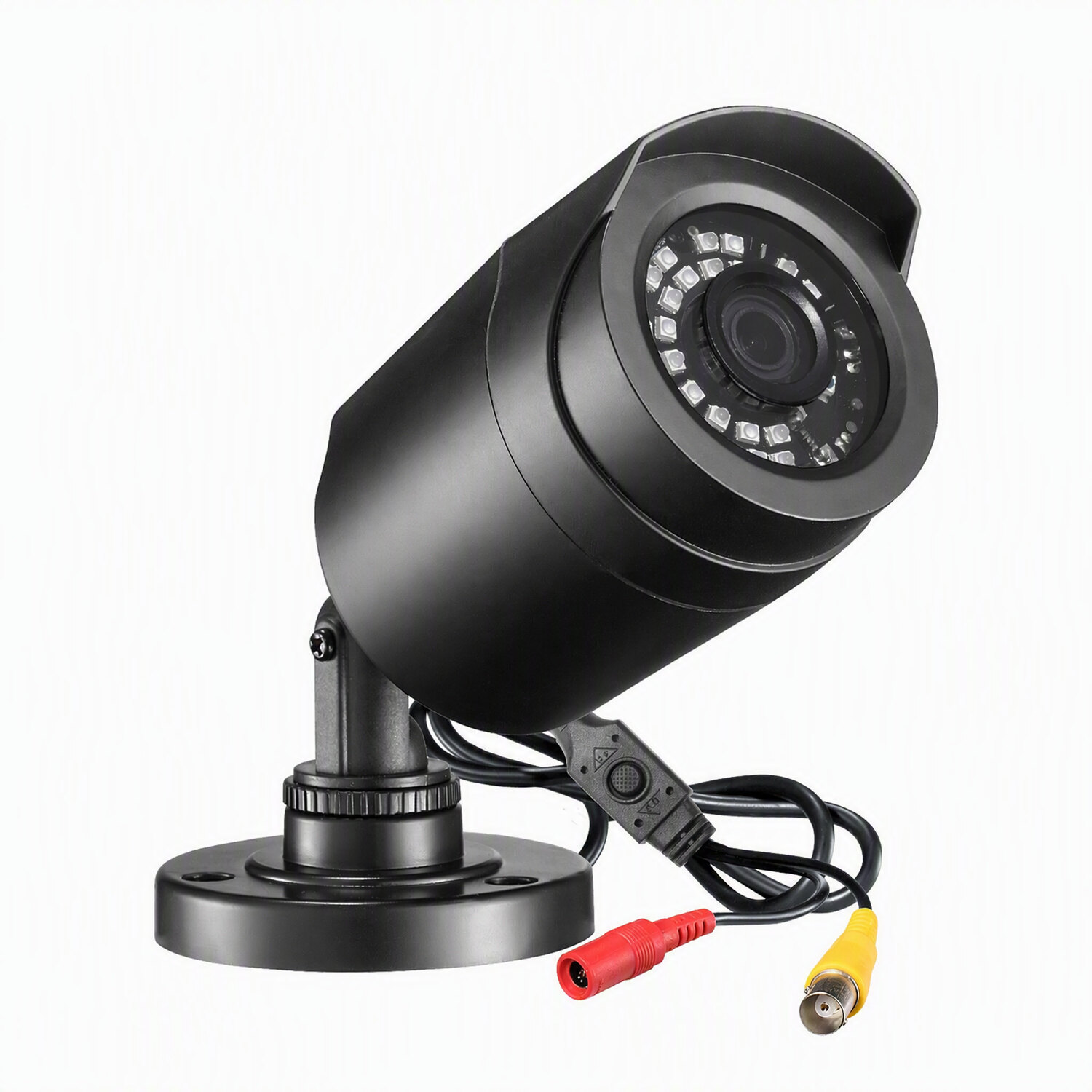

8CH 4-in-1 Hybrid DVR Kit

FAQ

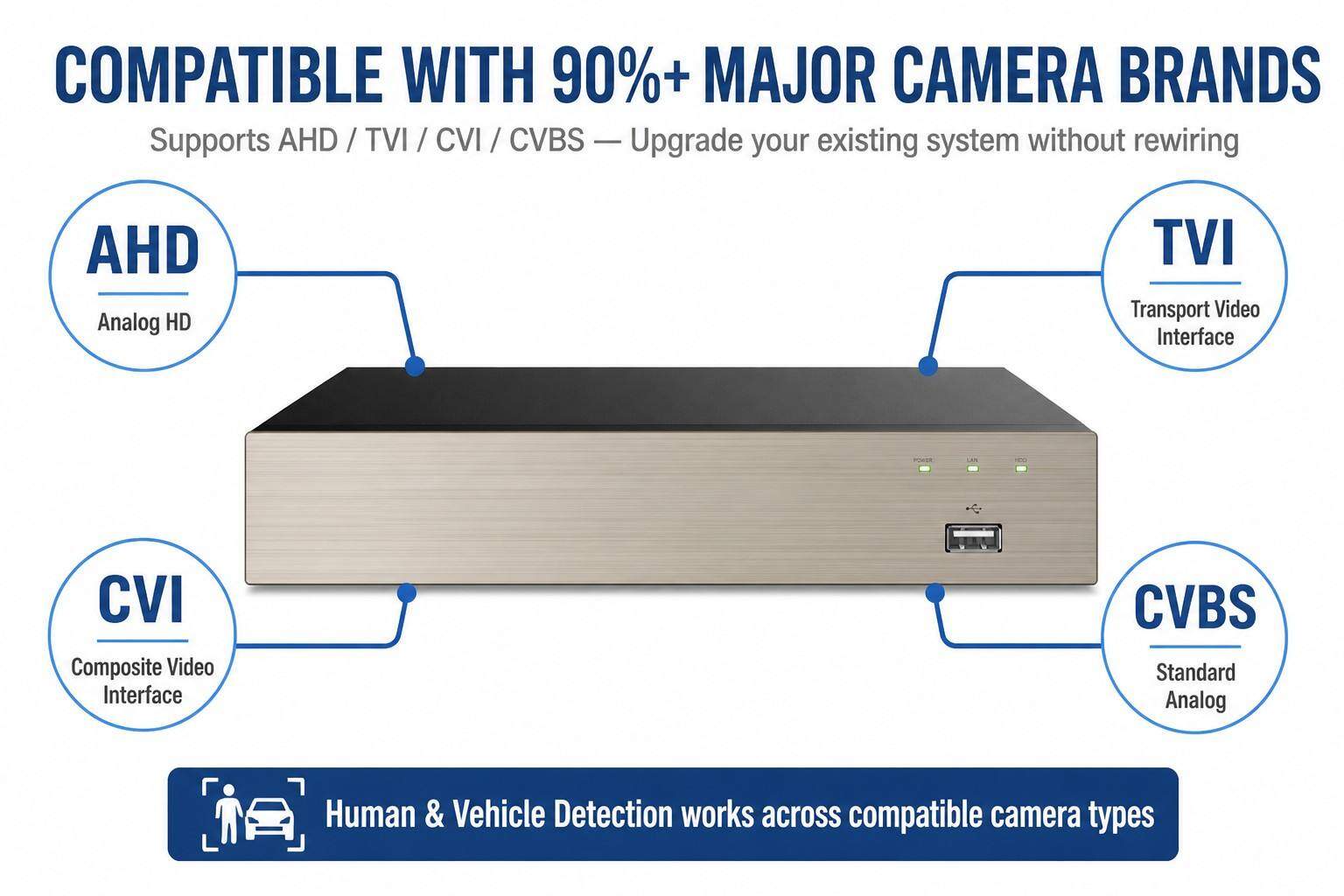

1. Will these cameras work with my existing DVR?
   Yes. Each camera supports HD-TVI, AHD, CVI, and CVBS 960H, and is compatible with DVRs from Hikvision, Dahua, and other brands — regardless of which analog format your recorder uses.

2. How do I switch between video formats?

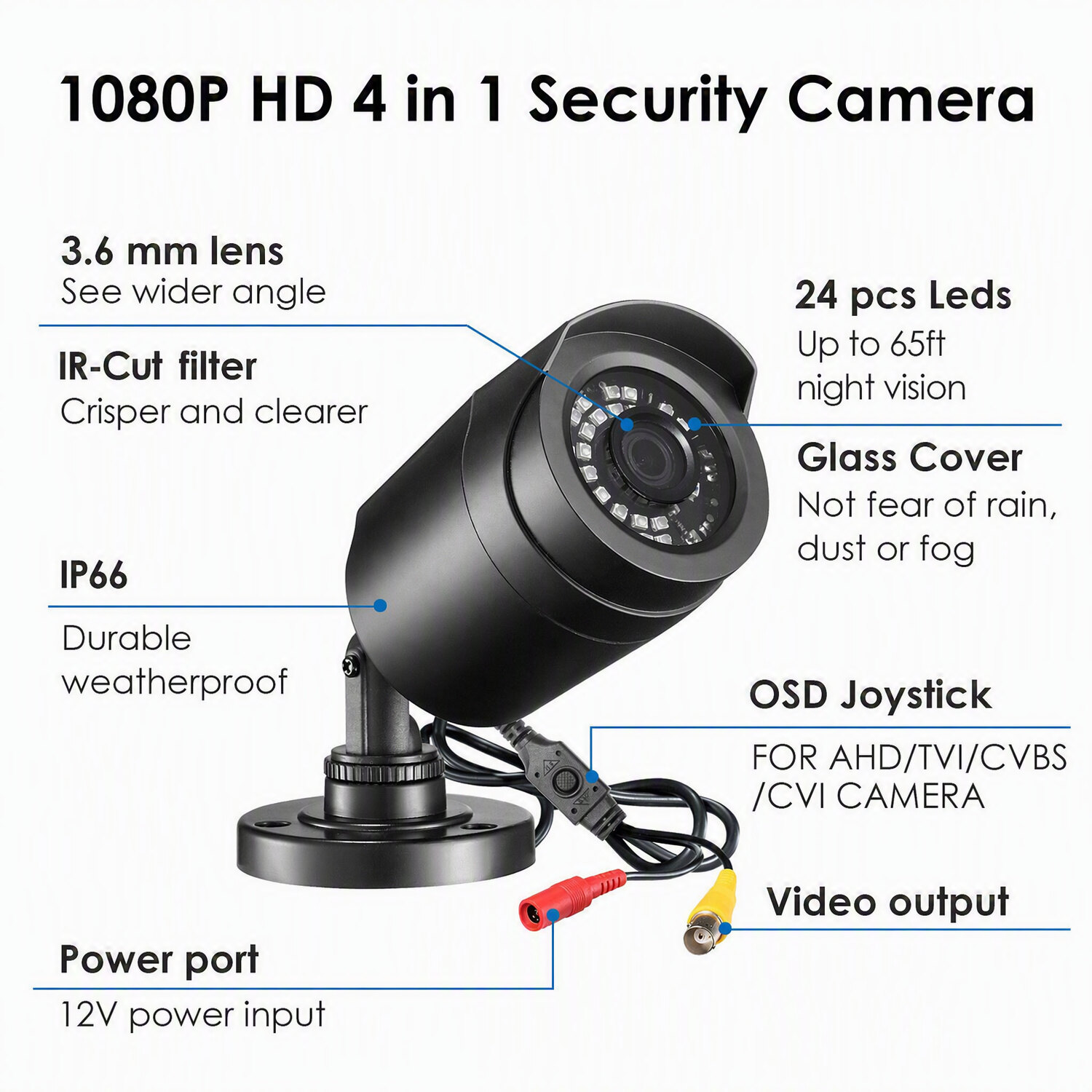

   Hold the OSD joystick on top of the camera for 5 seconds to cycle through HD-TVI, AHD, CVI, and CVBS output modes. No PC, software update, or disassembly is required.

3. Does it require SDPPI certification in Indonesia?
   No. This is a pure wired system with no WiFi, Bluetooth, or 4G radio module, so SDPPI radio frequency certification does not apply. Only SNI electrical safety certification is needed — reducing compliance costs by roughly 8% to 12% and shortening customs clearance.

4. Does the 8-channel DVR record all channels in real time?
   Yes. All 8 channels support real-time 1080P encoding and decoding simultaneously, so every camera displays and records smoothly without frame dropping on any channel.

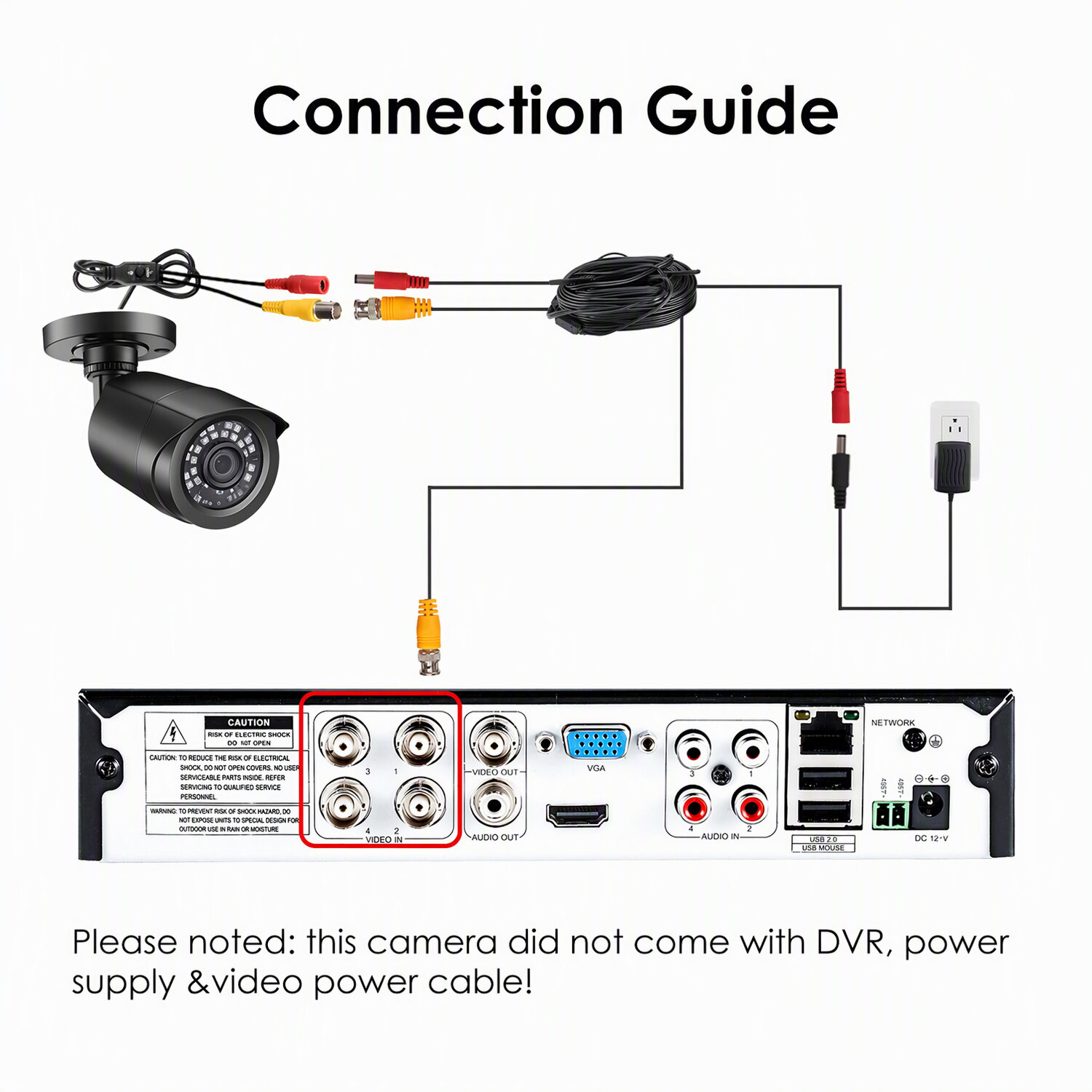

5. How far can the cameras be installed from the DVR?
   With 75-3 coaxial cable, video transmits losslessly in real time up to 300 meters per camera — well beyond the practical limits of Ethernet or WiFi. This suits large compounds, farms, and warehouses.

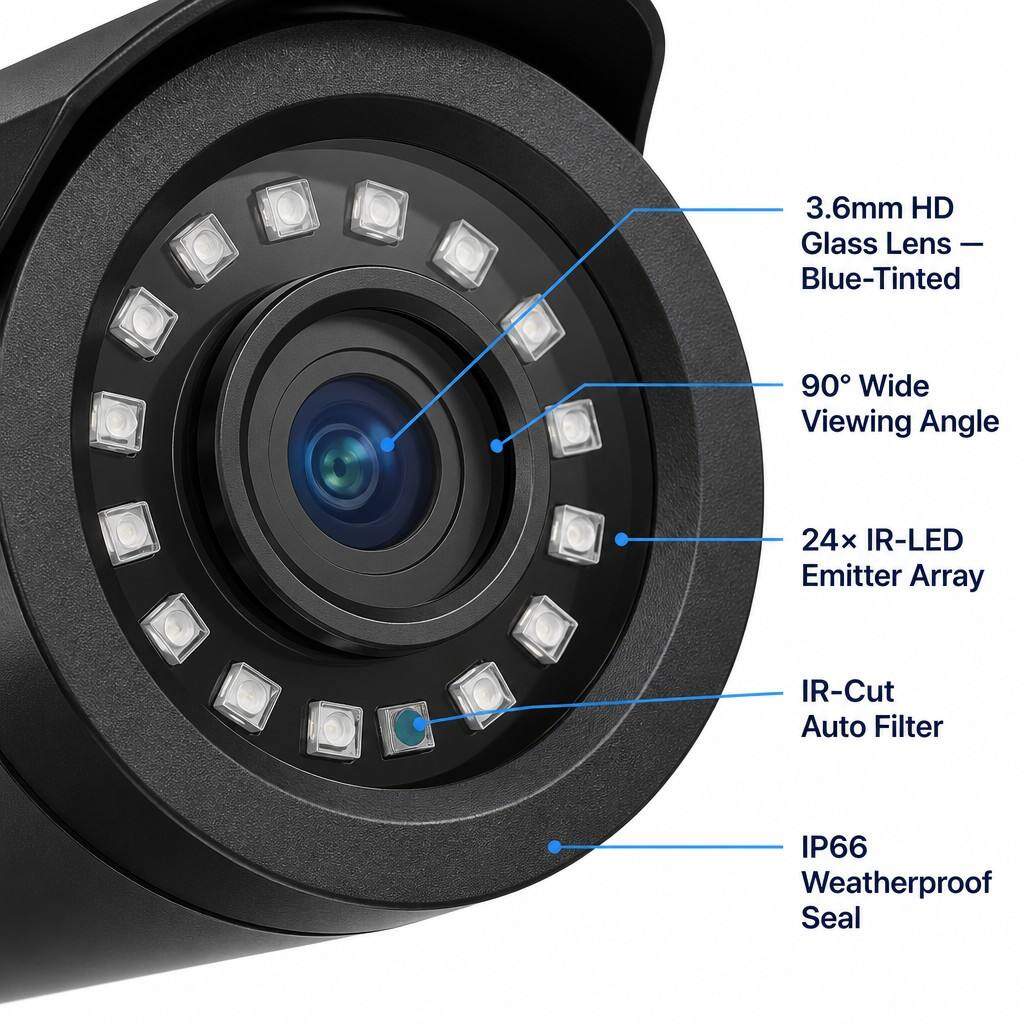

6. What is the night vision range?
   24 infrared LEDs provide visibility up to 20 meters (65 feet). Smart IR automatically adjusts intensity to prevent overexposure at close range, and the ICR filter switches between color and black-and-white automatically.

7. How much recording storage does it support?
   The DVR includes one SATA interface supporting hard drives up to 8TB, sufficient for extended continuous recording across all 8 channels.

8. Can I reduce false alarms?
   Yes. Customizable motion detection zones let you monitor only key areas such as entrances and cashier counters, cutting false triggers while limiting footage captured of other areas. Alerts push to your mobile app, email, and the DVR itself.

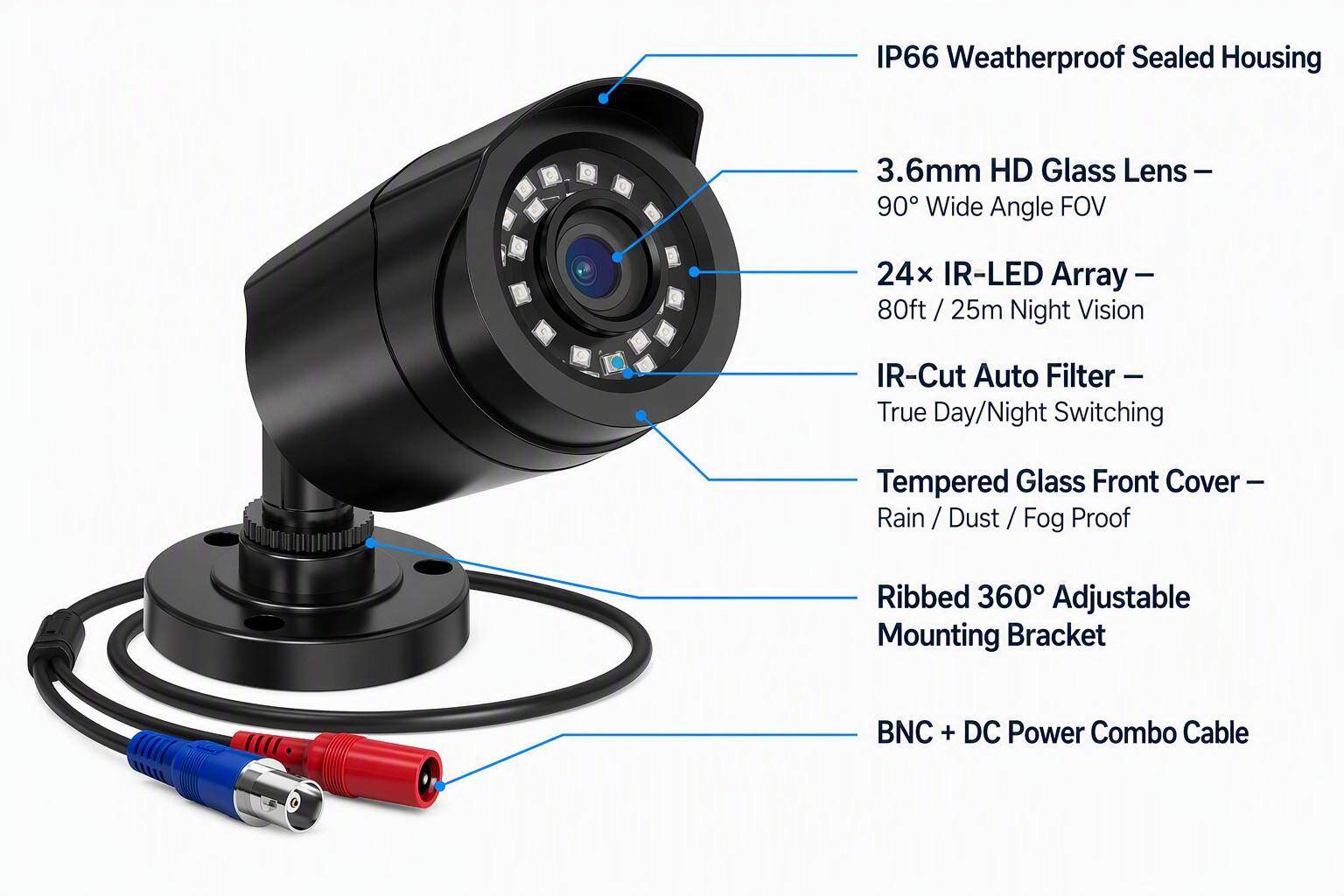

9. Will it hold up in Indonesia's climate?
   Yes. The IP66-rated housings have passed -10°C to 60°C thermal cycling tests, and the glass covers resist rain and fog, ensuring stable year-round operation in high-temperature environments.

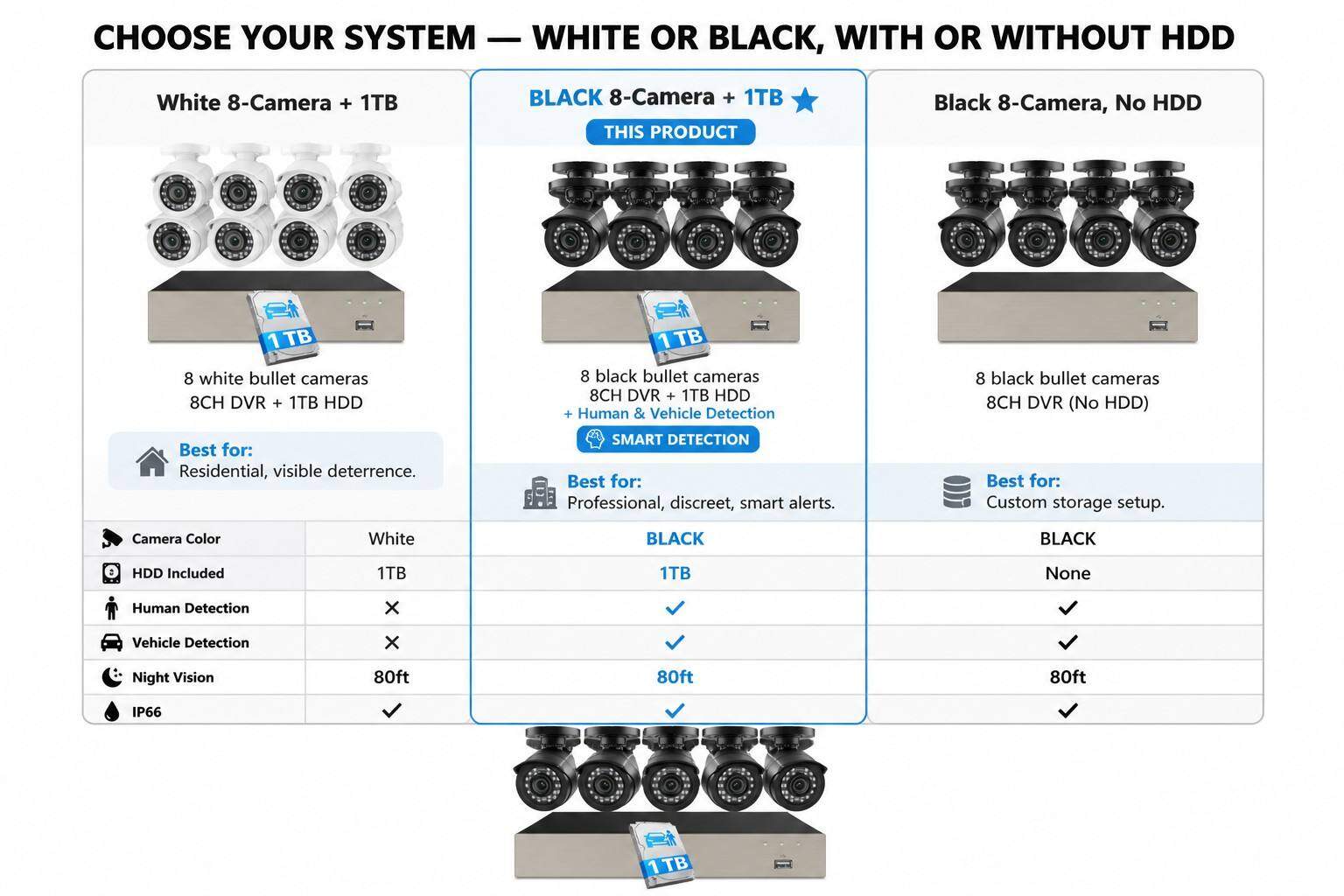

10. Are other housing colors available?
    Yes. This kit ships with black camera housings, and white housings are available on request for projects requiring a specific aesthetic.
