4-in-1 Hybrid CCTV DVR Kit

FAQ

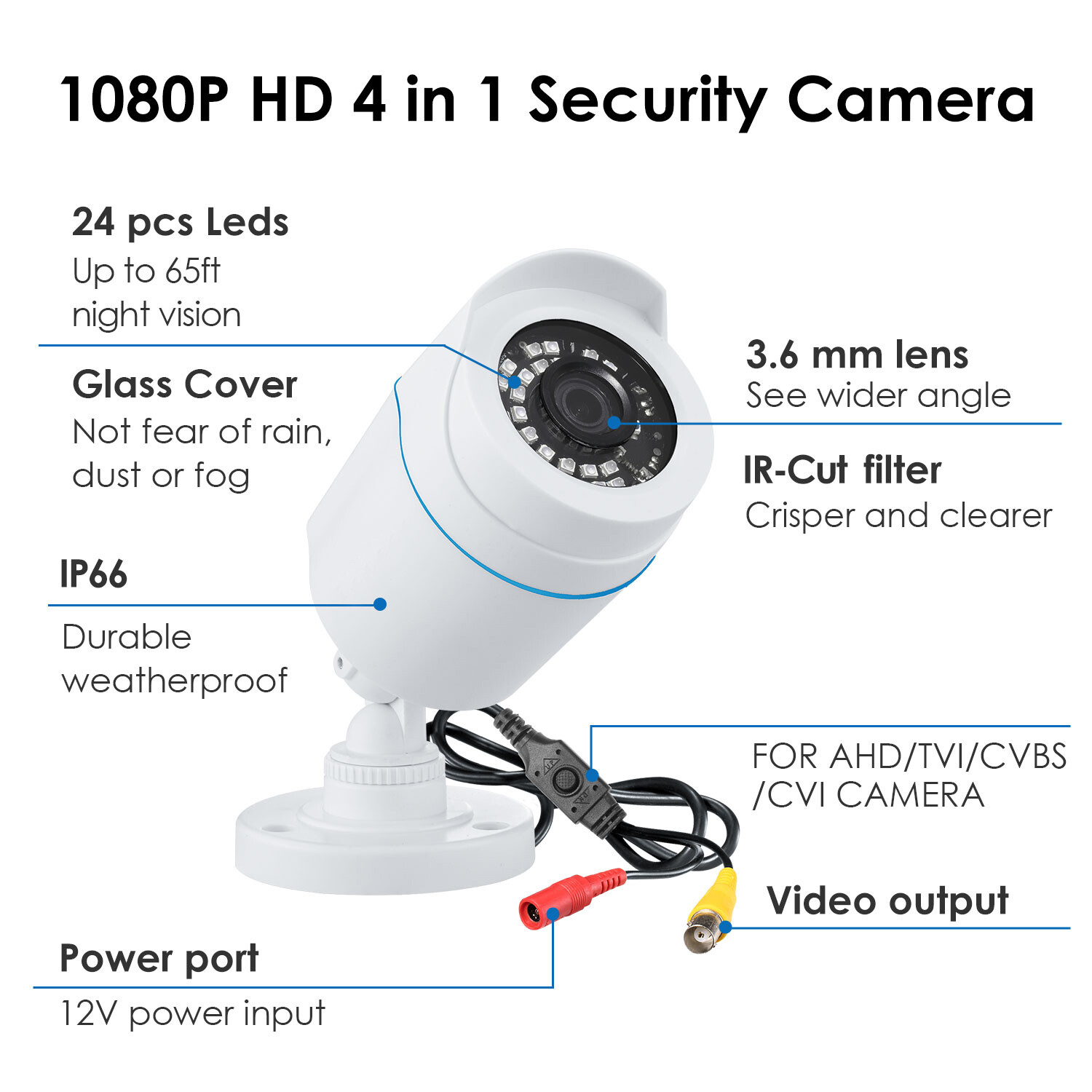

1. Will this camera work with my existing DVR?
   Yes. The camera supports HD-TVI, AHD, CVI, and CVBS 960H, and is compatible with DVRs from Hikvision, Dahua, and other brands. One camera model matches virtually any analog DVR in the field.

2. How do I switch between video formats?
   Hold the OSD joystick on top of the camera for 5 seconds to cycle through HD-TVI, AHD, CVI, and CVBS output modes. No PC, software, or disassembly is required.

3. Does it require SDPPI certification in Indonesia?
   No. This is a pure wired product with no WiFi, Bluetooth, or 4G radio module, so SDPPI radio frequency certification does not apply. Only SNI electrical safety certification is needed — reducing compliance costs by roughly 8% to 12% and shortening customs clearance.

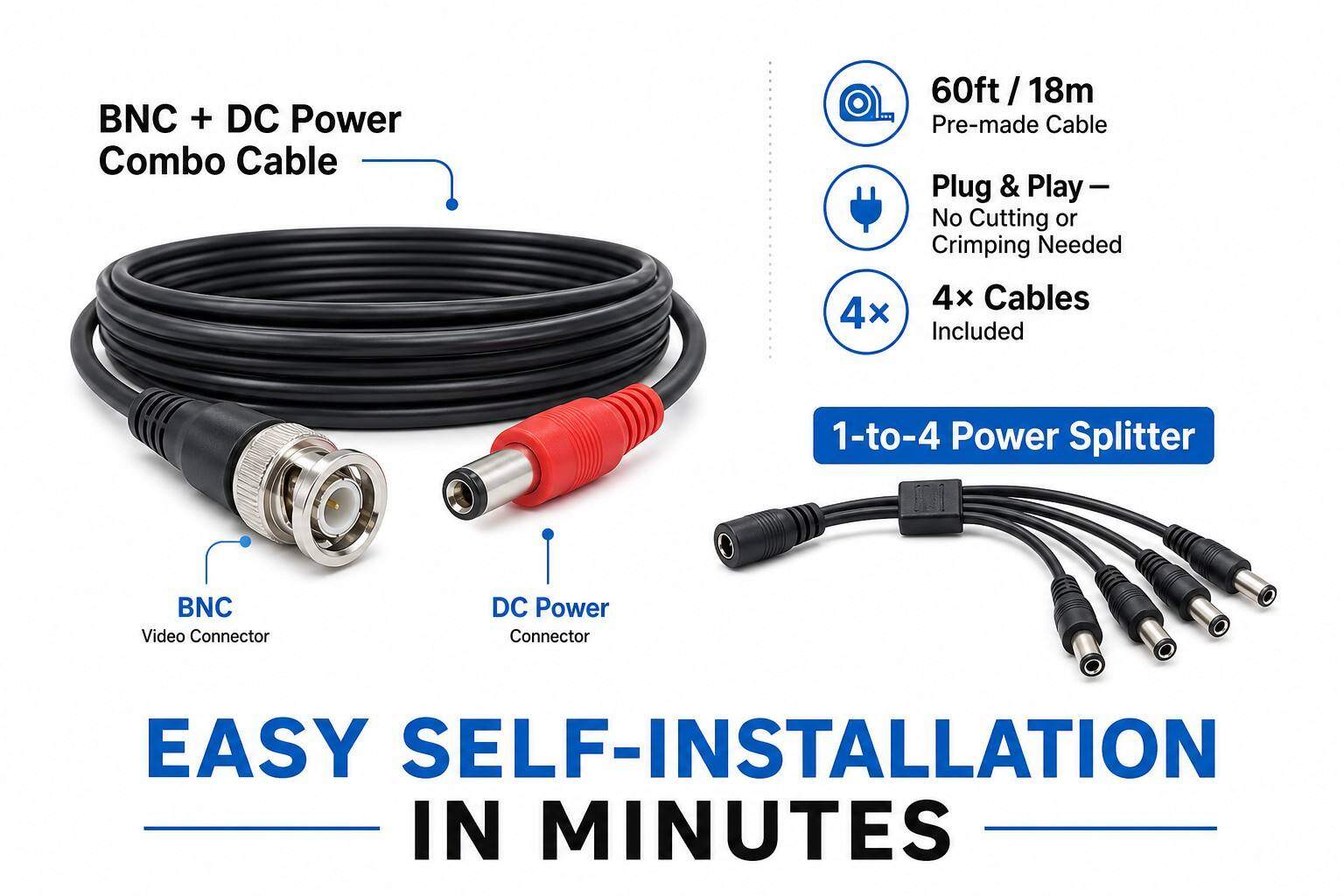

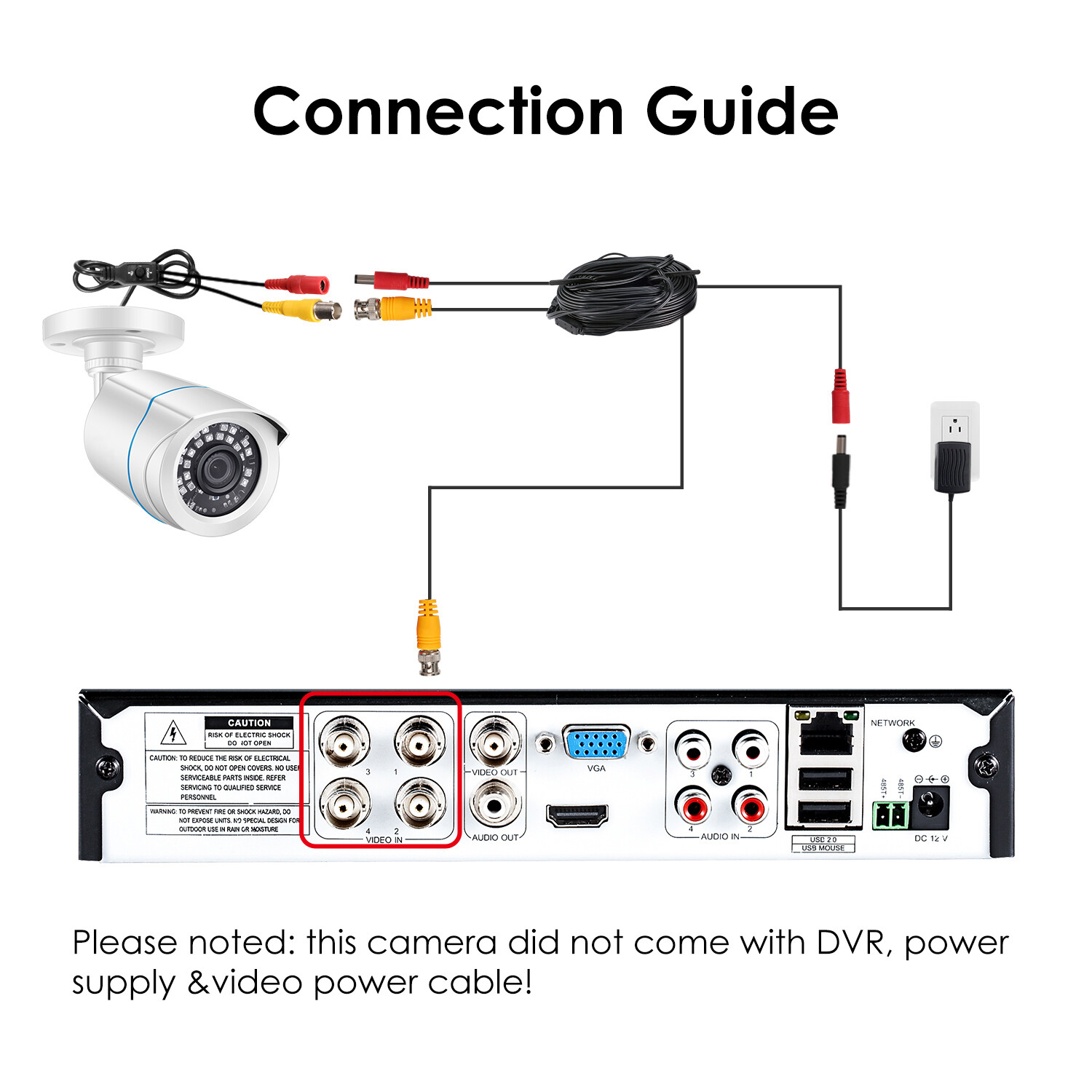

4. How far can the camera be installed from the DVR?
   With 75-3 coaxial cable, the camera transmits lossless real-time video up to 300 meters — well beyond the practical limits of Ethernet or WiFi. This suits large compounds, farms, and warehouses.

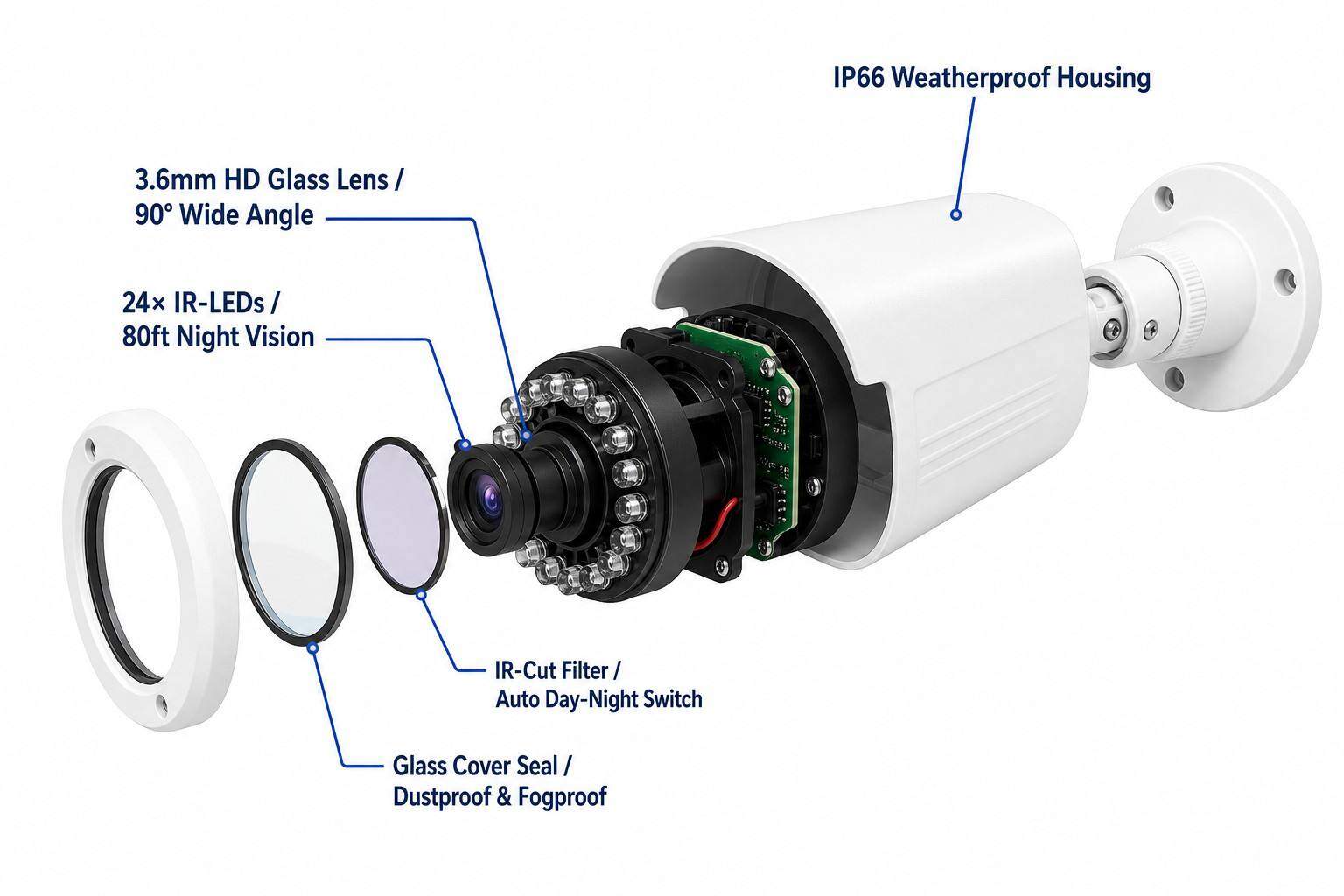

5. What is the night vision range?
   24 infrared LEDs provide visibility up to 20 meters (65 feet). Smart IR automatically adjusts intensity to prevent overexposure at close range, and the ICR filter switches between color and black-and-white automatically.

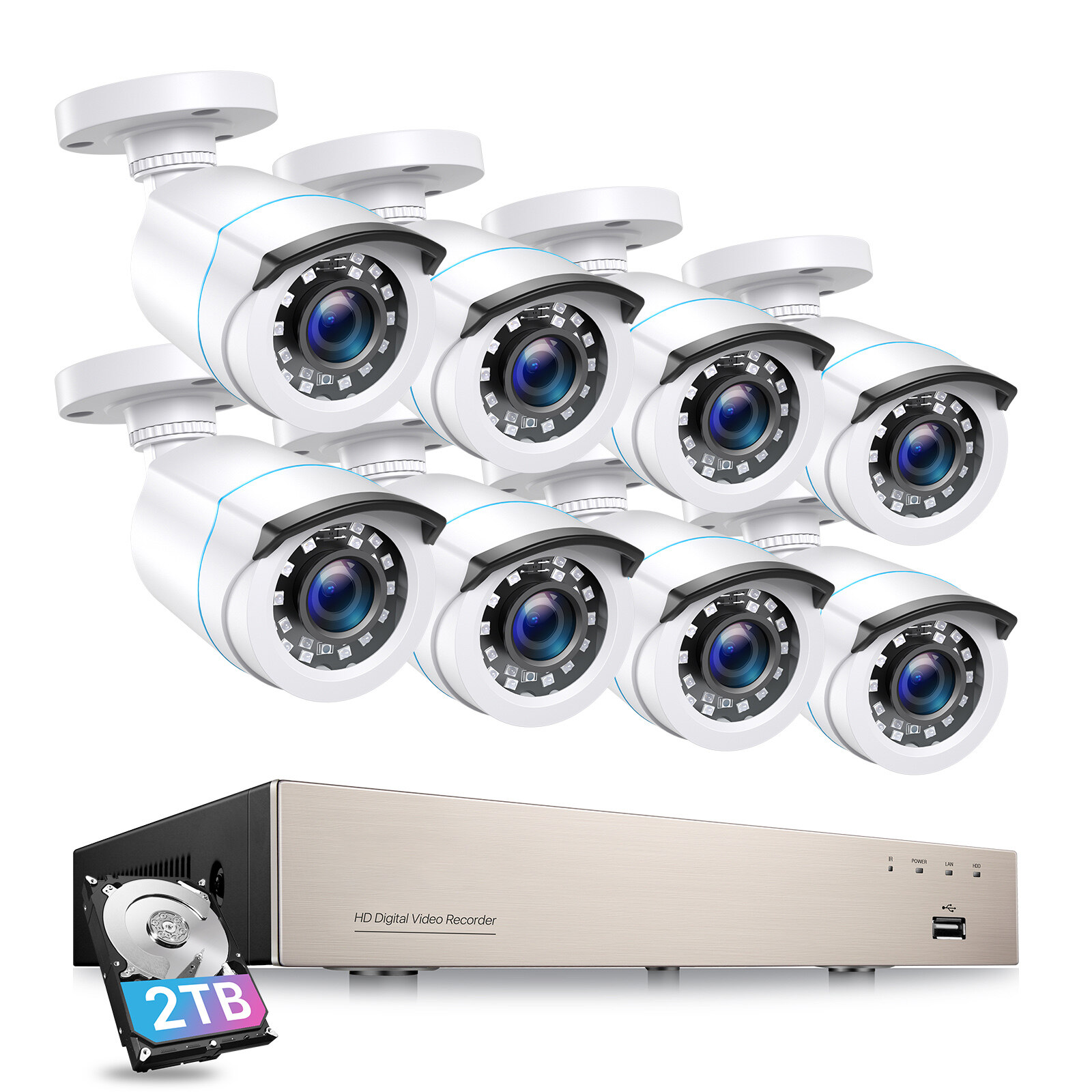

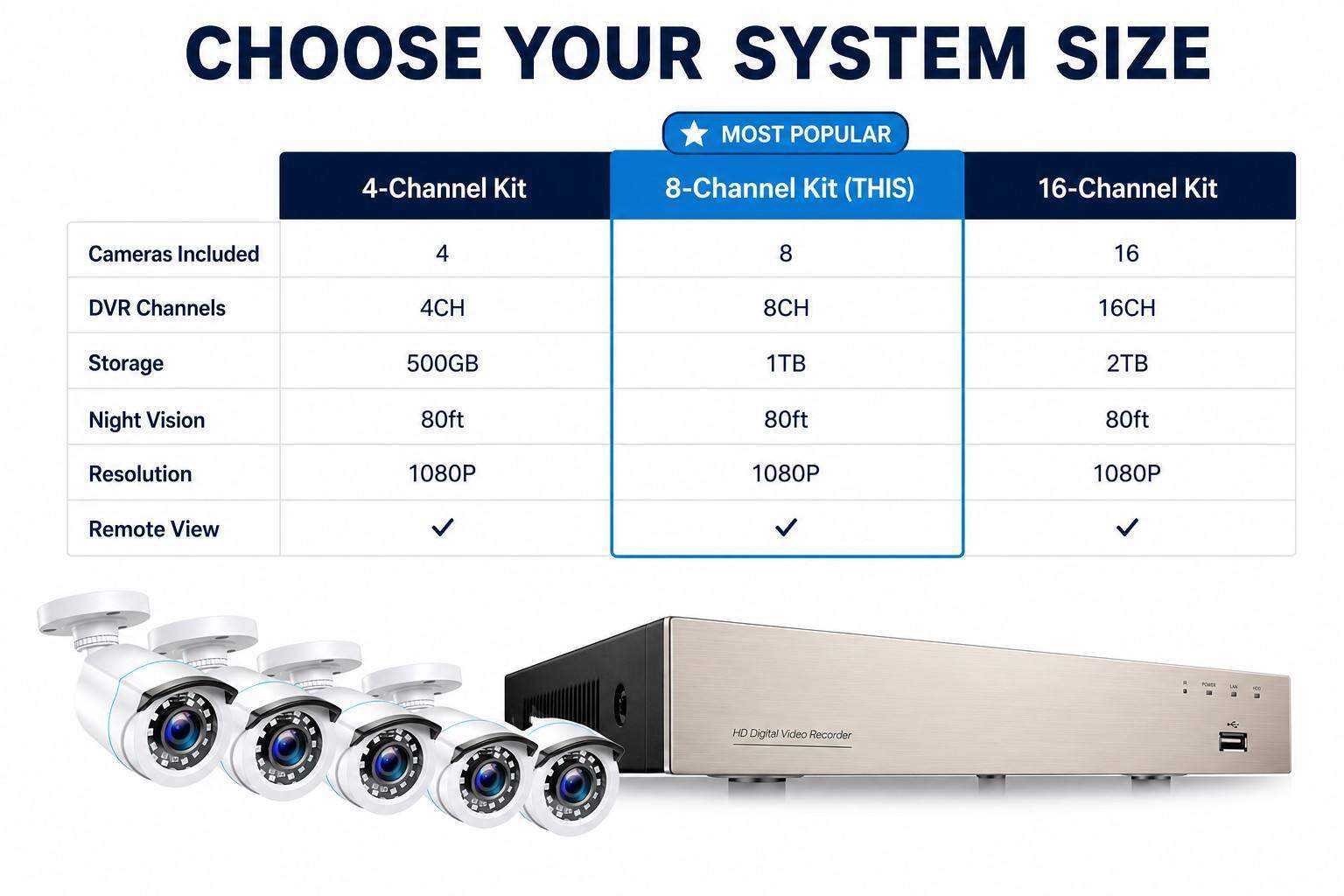

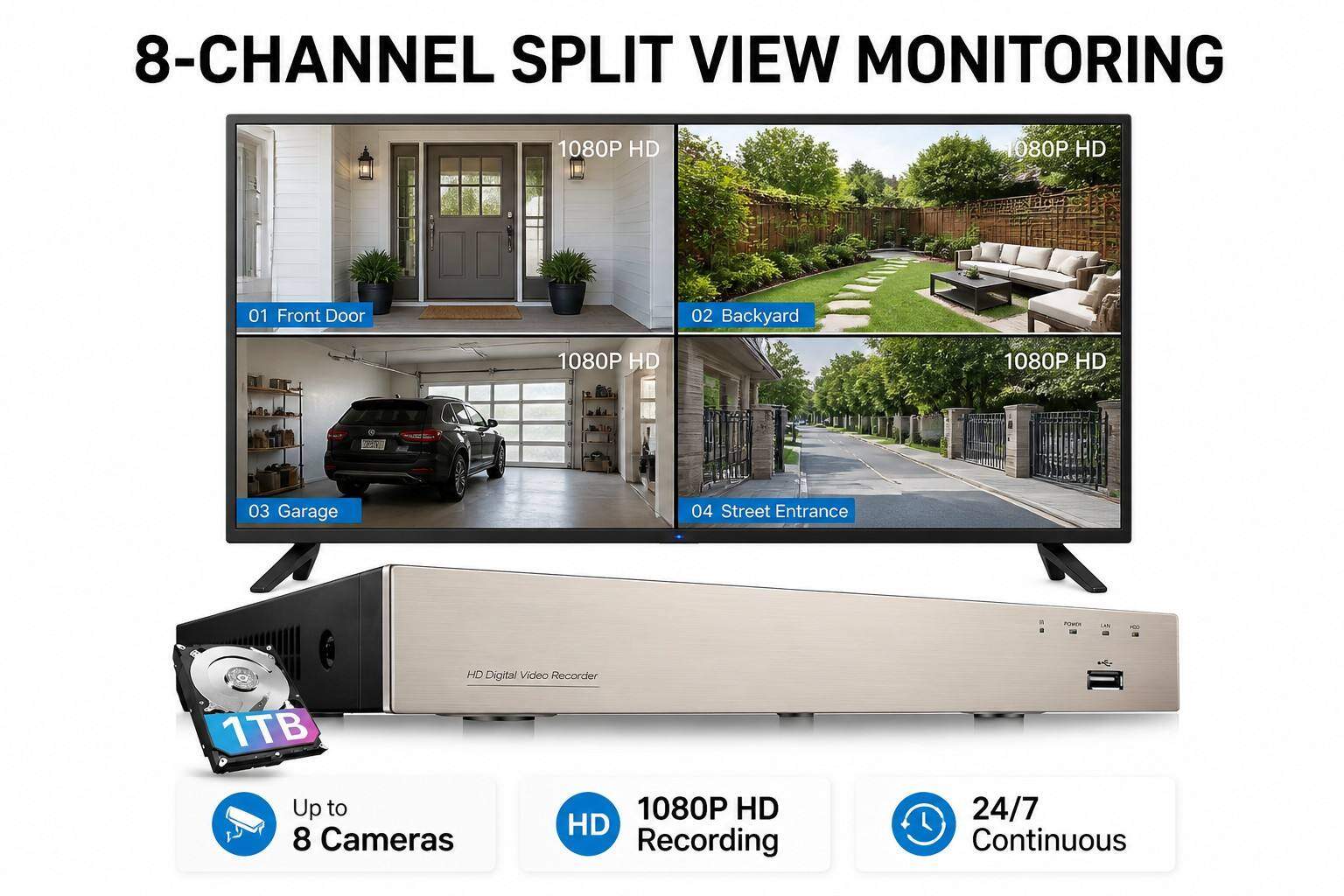

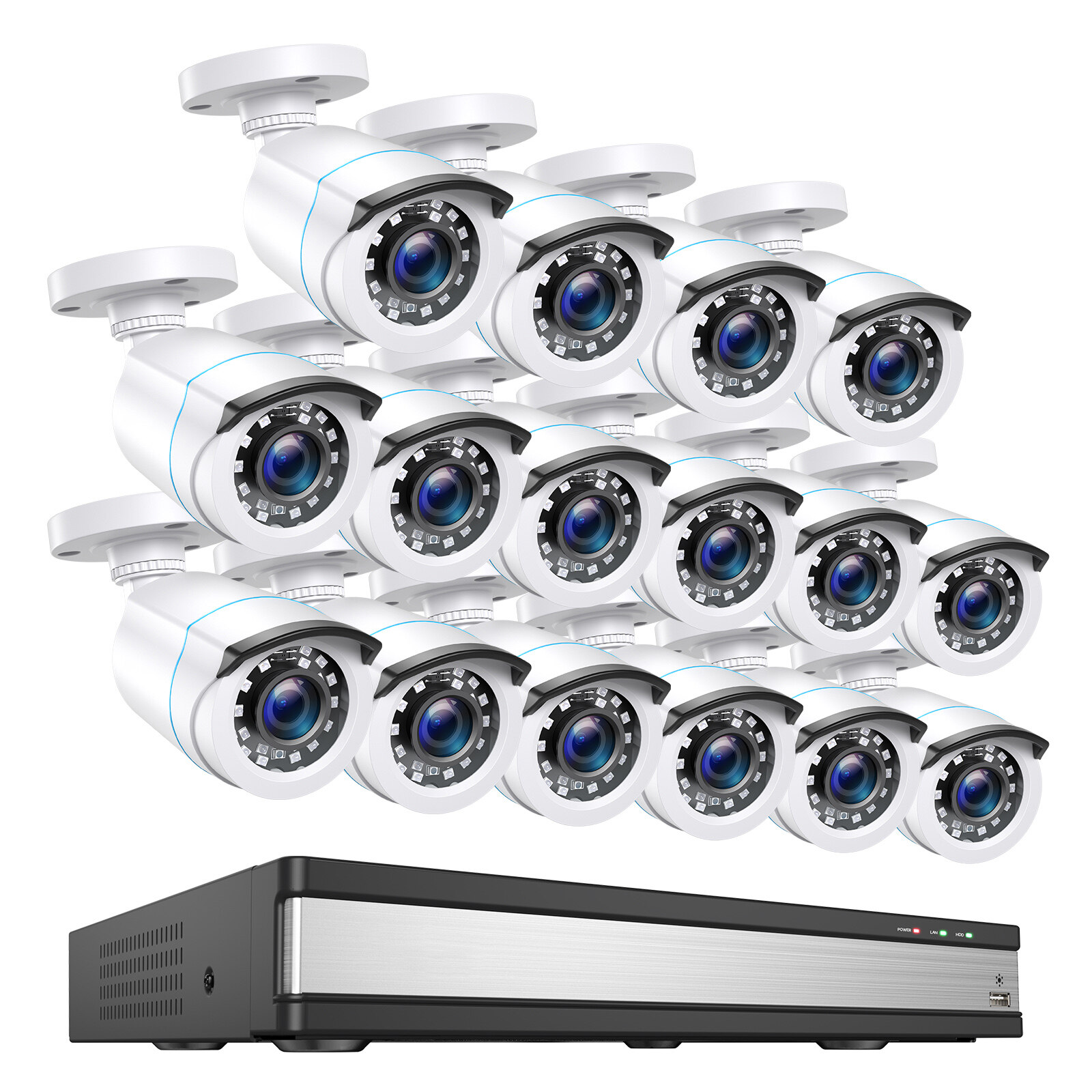

6. How many channels are available?
   The system is offered in 4-channel, 8-channel, and 16-channel configurations. The 8-channel DVR supports real-time 1080P encoding across all channels simultaneously.

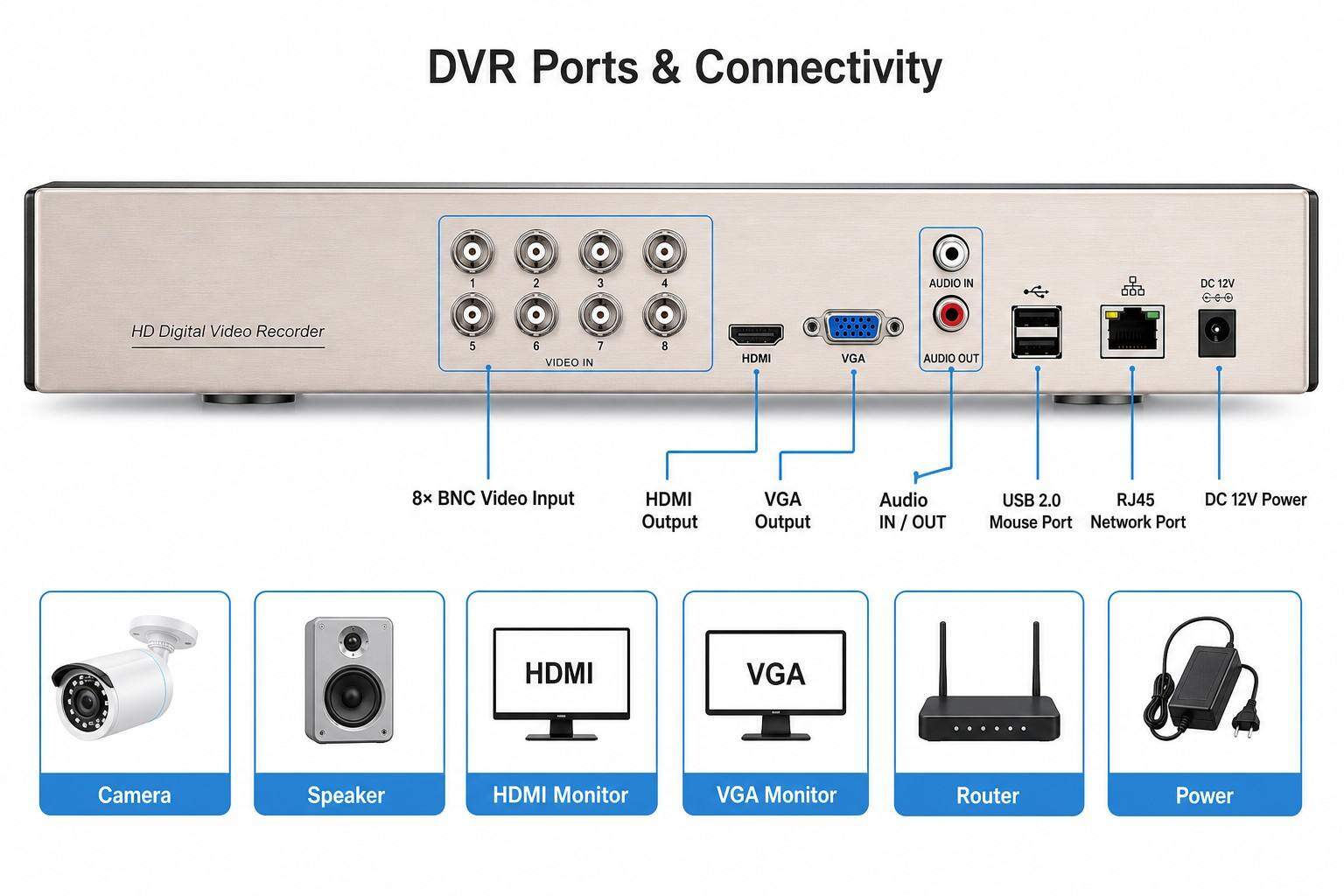

7. How much recording storage does it support?
   The DVR includes one SATA interface supporting hard drives up to 8TB, sufficient for extended continuous recording.

8. Can I reduce false alarms?
   Yes. Customizable motion detection zones let you monitor only key areas such as entrances and cashier counters, cutting false triggers while limiting footage captured of other areas.

9. Will it hold up in Indonesia's climate?
   Yes. The IP66-rated housing has passed -10°C to 60°C thermal cycling tests, and the glass cover resists rain and fog. A combined metal and plastic housing balances heat dissipation with structural durability.

10. How difficult is remote setup?
    Only in three steps with no technical expertise required, allowing live viewing and playback from your phone anywhere.
